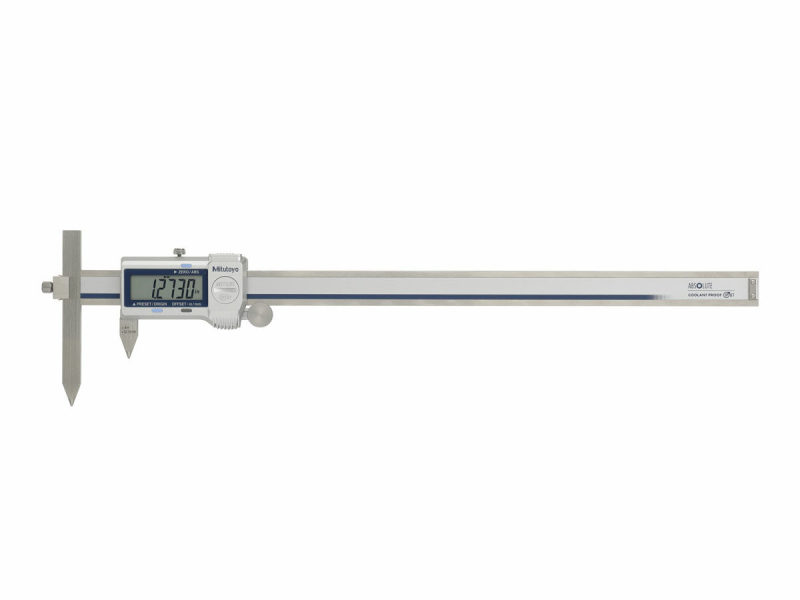

The Mitutoyo ABSOLUTE Digimatic Offset Centerline caliper features main scale jaws that adjust up and down to measure unlevel (different planes) center-to-center distances. The offset centerline caliper takes highly accurate center-to-center measurements and hole diameters of 1.55mm to 10mm. The centerline caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal on the shop floor.
- Available in Metric and Inch/Metric models
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
- Unnecessary to wipe or clean the scale
- Supplied in fitted plastic case
Technical Data
| Technology: |
Digimatic |
| Length Standard: |
ABSOLUTE electrostatic capacitance type linear encoder |
| Max Response Speed: |
Unlimited |
| Display: |
LCD |
| Battery: |
SR44 (1 pc.) 938882 |
| Battery life: |
Approx. 5 years under normal use |
| SPC Output: |
Yes |
| IP RATING |
IP 67 |
| Optional Accessories: |
05CZA624, 05CZA625 |
PRODUCT LIST:
Please contact us for more models.
| Order No.: |
Units: |
Range: |
Resolution: |
Accuracy: |
Mass: |
| 573-605-20 |
Metric |
10.1-160mm |
0.01mm |
±0.03mm |
157g |
| 573-606-20 |
Metric |
10.1-210mm |
0.01mm |
±0.03mm |
177g |
| 573-705-20 |
Metric, Inch |
10.1-150mm / 0.404-6.4" |
0.0005" / 0.01mm |
±0.0015" |
157g |
| 573-706-20 |
Metric, Inch |
10.1-200mm / 0.404-8.4" |
0.0005" / 0.01mm |
±0.0015" |
177g |
| 573-708-20 |
Metric, Inch |
10.1-300mm / 0.404-12.4" |
0.0005" / 0.01mm |
±0.0015" |
320g |
