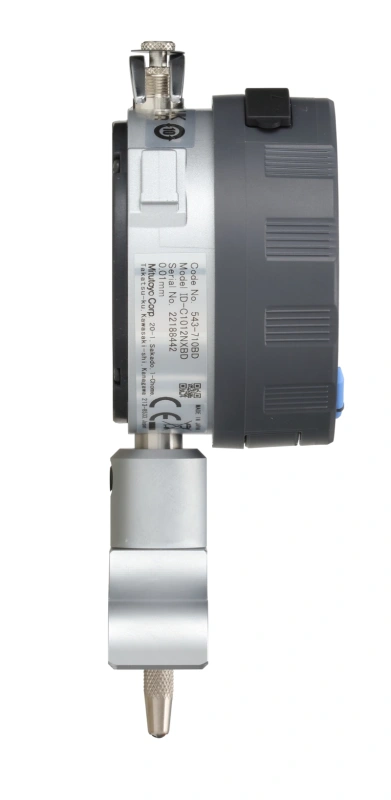

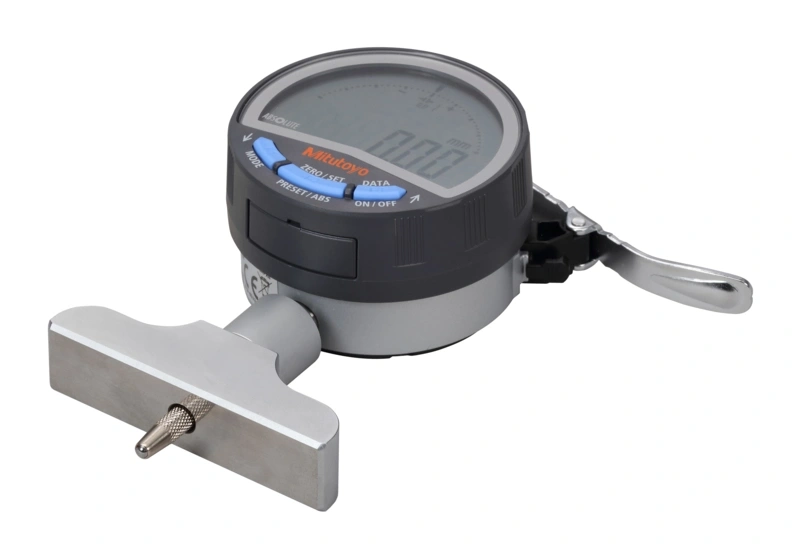

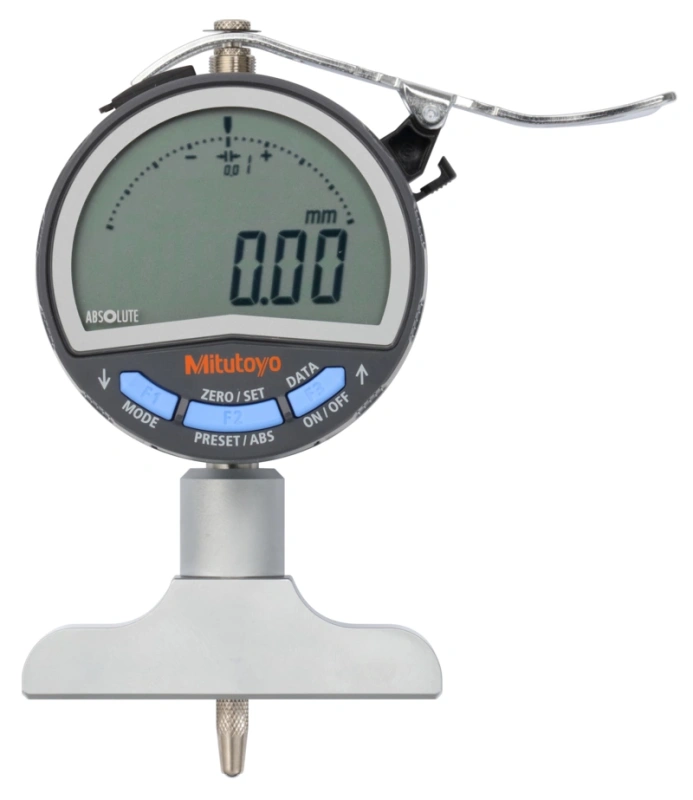

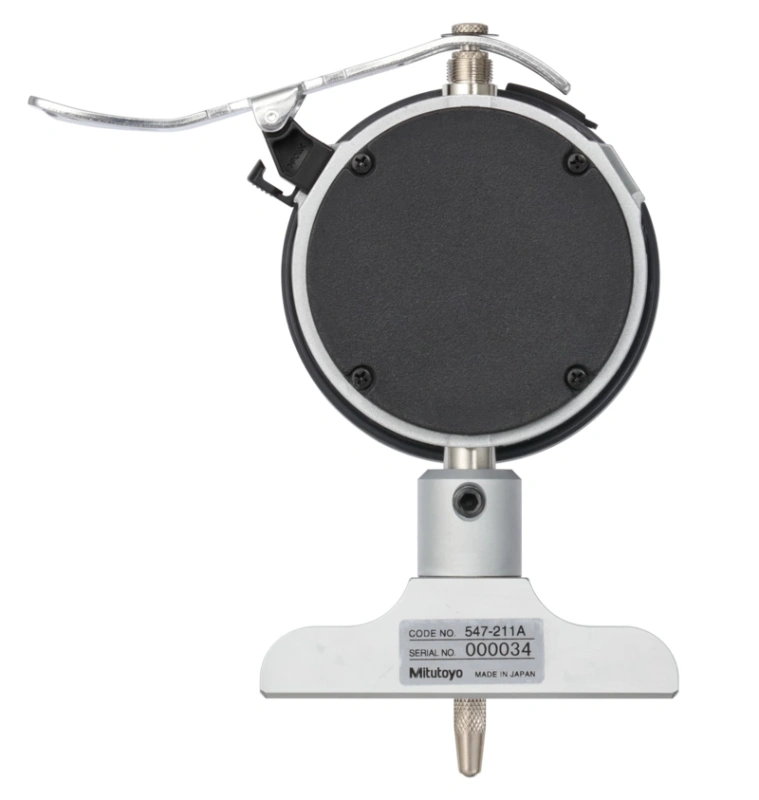

Digital Depth Gauge 0-200mm, 0,01mm, 63,5mm Base 547-211A

SKU: 547-211A

This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:

It is equipped with the ABSOLUTE Digimatic Indicator ID-C.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
It has a hardened, precision ground and micro-lapped reference face on its base.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Description

Technical Data

Digital/Analog:	Digital
Inch-Metric:	Metric
Digital step:	0,01 mm
Stroke:	12.7mm
Accuracy:	± 20 μm
Base flatness:	5 μm
Scale:	Capacitance type ABSOLUTE linear encoder
Contact point:	Carbide ball, thread: M2.5x0.45
DATA/HOLD:	Yes
PRESET:	Yes
ON/OFF:	Yes
Lock function:	Yes
GO/±NG judgement:	Yes
MAX/MIN/RANGE:	Yes
ZERO/ABS:	Yes
ABS / INC (INC ZERO):	Yes
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:	1 battery CR2032 (3V)
Measuring force:	≤ 1.5 N
Battery life:	Approx. 7000 hours
Mass:	280g
Delivered:	Including box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA224
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Calibration warning function:	Yes

Dimensions
