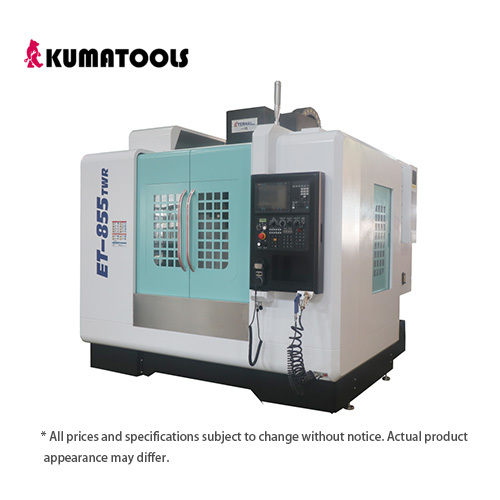

ET-855TWR CNC Machine
(0 Reviews)
0 Sold
Sign in to view the price.
| ET-855TWR | DETAILS |
| TRAVELS | |
| X/Y/Z Axis | 800/550/550 mm |
| Spindle to Column | 590mm |
| Spindle nose to table surface | 120-670 mm |
| TABLE | |
| Table Size | 1000*500 mm |
| Max.Load | 500kg |
| Number/Size x Distance of T-slots | 5 / 18 x 90 |
| SPINDLE | |
| Spindle Taper /Dia. | BT40 / 150 |
| Max.Speed | 12000 rpm (direct-drive) |
| Spindle Motor | 7.5 Kw |
| FEED RATES | |
| X/Y/Z-Axis Rapid Traverse | 36 / 36 / 36 m/min |
| Cutting feed speed | 1-5000 mm/min |
| ACCURACY | |
| Positioning Accuracy | ±0.003 / 300 mm |
| Repeatability | ± 0.002 mm |
| OTHERS | |
| Controller | MITSUBISHI M80B |
| Tool Magazine | Taiwan SANJET |
| Tool No. | 24T |
| Chip Removal Method | Back Flushing |
| X Axis Rail | 35 rollers |
| Y Axis Rail | 45 rollers |
| Z Axis Rail | 45 rollers (3 slide blocks) |
| Air compressor | 0.6-0.7kg/cm² |

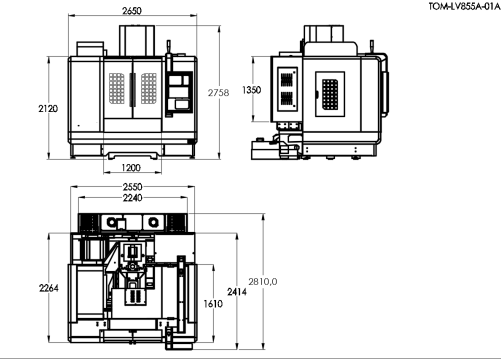

| Size | 2395*2643*2295 mm |
| Gross weight | 4200kg |
