Depth Micrometer, Interchangeable Rods 0-300mm, 101mm Base 129-153

Name: Depth Micrometer, Interchangeable Rods 0-300mm, 101mm Base 129-153
Brand: Kumatools
SKU: 129-153
Price: 630.72 USD
Availability: InStock

SKU: 129-153

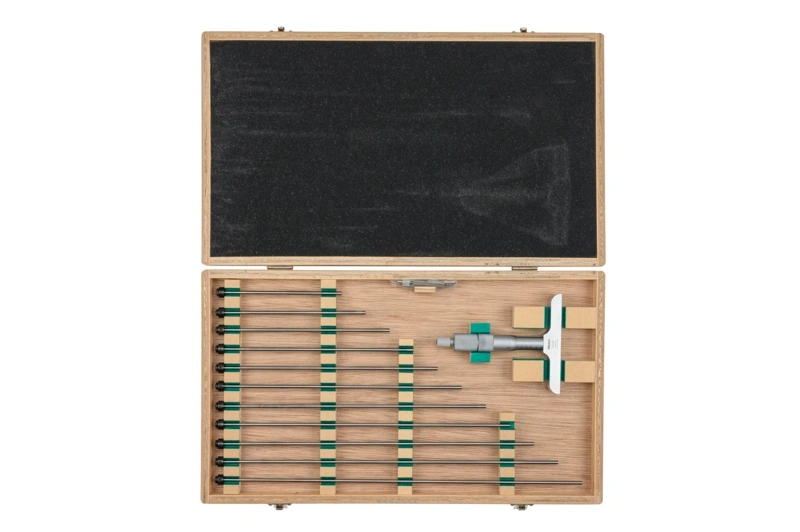

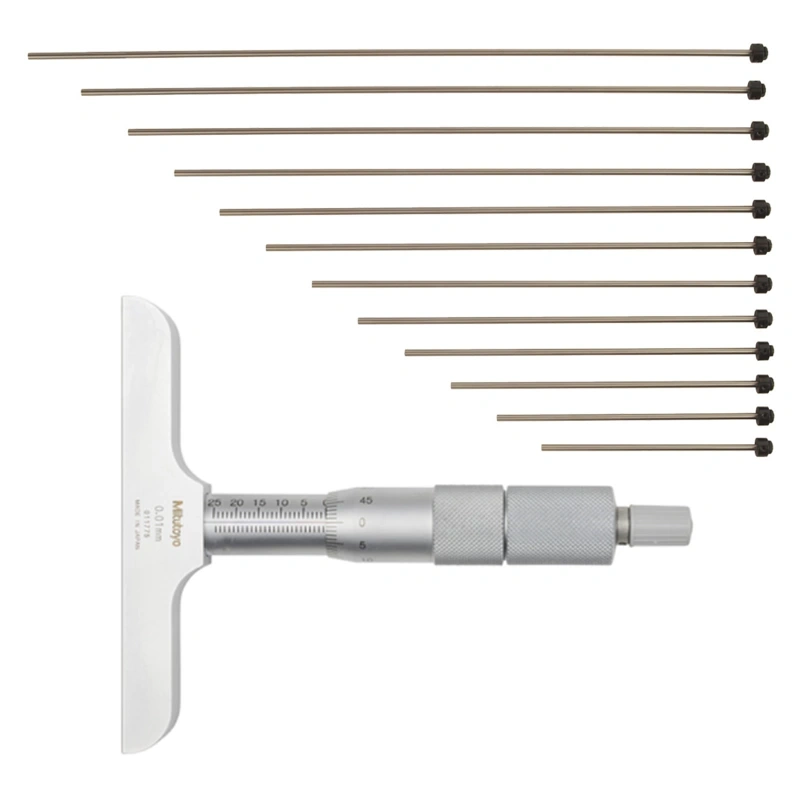

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 100mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Technical Data

Digital/Analog:	Analog
Range:	0 - 300 mm
Graduation:	0,01 mm
Inch-Metric:	Metric
Measuring span:	25 mm
Spindle pitch:	0,5 mm
Micrometer Head Feed (0-25 mm):	±3 µm
Zero point errors of rods:	±6 µm
Flatness base:	2 µm
Flatness rod:	0,3 µm
Parallelism base/rod:	10 µm
Measuring face:	Hardened, precision ground, micro-lap finish
Base:	Hardened tool steel
Number of rods:	12
Scale:	Thimble and sleeve satin chrome finish ∅18 mm
Measuring force:	5-10 N
Delivered:	Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass:	640 g
