Depth Micrometer, Interchangeable Rods 0-75mm, 63mm Base 129-110

SKU: 129-110

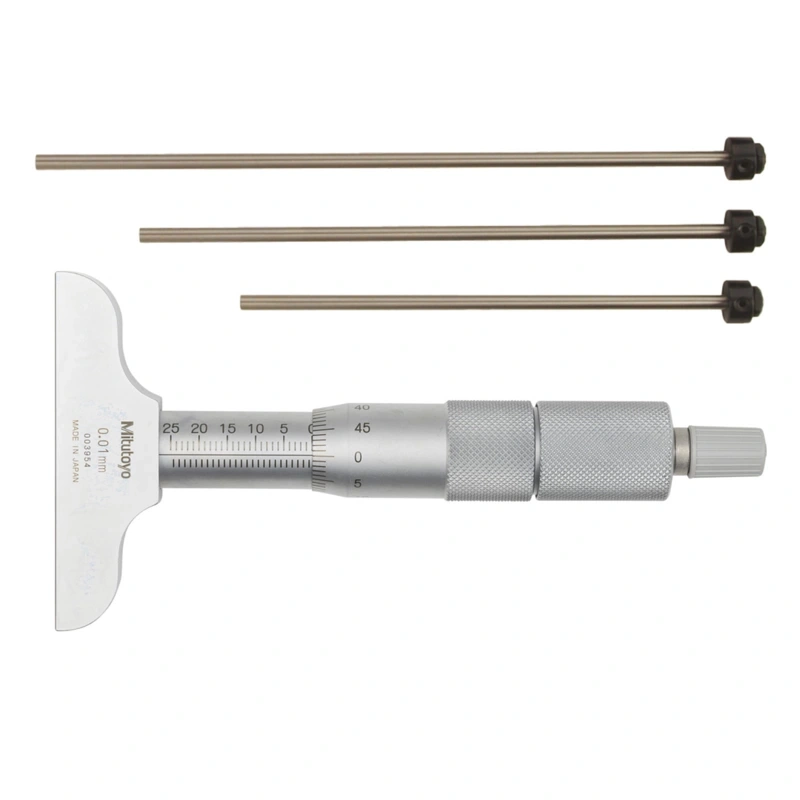

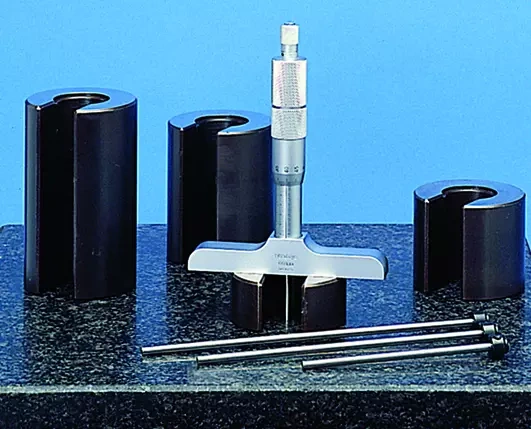

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 60mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
Add to Favorites (0)
  • Depth Micrometer, Interchangeable Rods 0-75mm, 63mm Base 129-110
  • Depth Micrometer, Interchangeable Rods 0-75mm, 63mm Base 129-110
  • Description
Technical Data
Digital/Analog:
Analog
Range:
0 - 75mm
Graduation:
0,01 mm
Inch-Metric:
Metric
Measuring span:
25mm
Spindle pitch:
0,5mm
Micrometer Head Feed (0-25 mm):
±3 μm
Zero point errors of rods:
±3 μm
Flatness base:
1.3 μm
Flatness rod:
0,3 μm
Parallelism base/rod:
6 μm
Measuring face:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel
Number of rods:
3
Scale:
Thimble and sleeve satin chrome finish 18 mm
Measuring force:
5-10 N
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass:
280g
