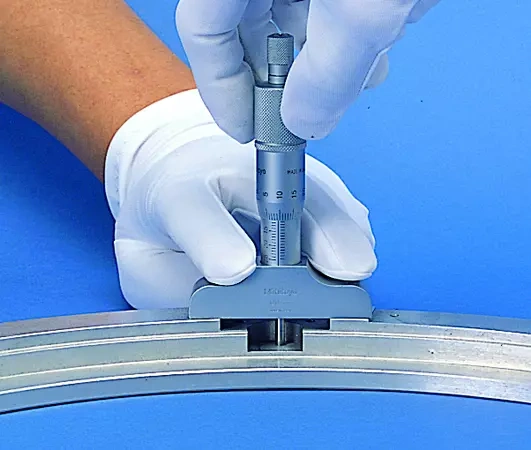

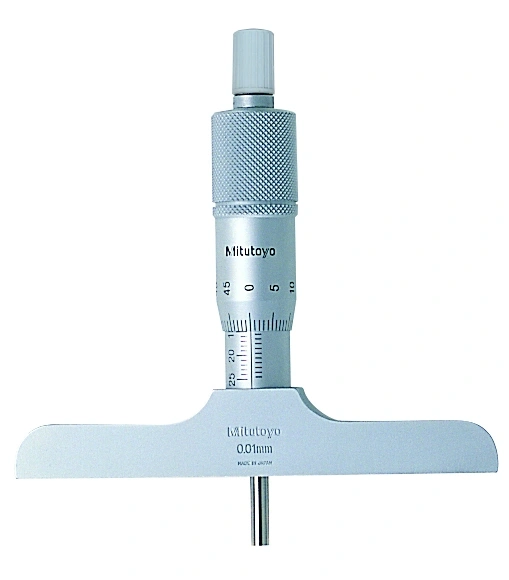

Depth Micrometer 0-25mm, 101mm Base 128-102

Name: Depth Micrometer 0-25mm, 101mm Base 128-102
Brand: Kumatools
SKU: 128-102
Price: 233.28 USD
Availability: InStock

SKU: 128-102

A Mitutoyo non-digital depth micrometer. The 101mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Technical Data

Digital/Analog:	Analog
Range:	0 - 25 mm
Graduation:	0,01 mm
Inch-Metric:	Metric
Measuring face:	Hardened, precision ground, micro-lap finish
Measuring span:	25 mm
Flatness base:	2 µm
Flatness rod:	0.3 µm
Parallelism base/rod:	5 µm
Base:	Hardened tool steel
Base (W x T):	101.6 x 16 mm
Scale:	Thimble and sleeve satin chrome finish, ∅ 18 mm
Measuring force:	5-10 N
Mass:	250 g
Delivered:	Including box and spanner 301336
Spindle pitch:	0,5 mm
